ABOUT US
UVI Technologies has been making a name for itself in the renewable energy space. We are a single point source for solar-powered products be it solar panels, solar street lights, solar pumps, indoor and outdoor solar powered lighting solutions, and smart solar poles.
Our solar panels can be customized as per client requirements and our solar street light and solar smart poles are made in-house and their output and backup can be customized as well. We are proud to be part of the Make in India campaign and making products of global standards.
Products

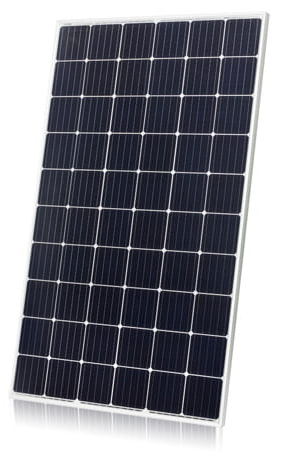

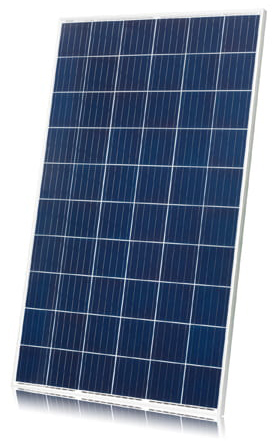

Solar PV modules
UVI solar PV modules are available in both mono and polycrystalline solar cells. Our panels use the best quality EVA and Backsheets which are sourced from Indian manufacturers. Our glass is also procured directly from the manufacturer and we have the facility to cut and temper the glass locally giving us the freedom to customize the size of the panels as per customer requirements.
Our state of line assembly setup and multi-point quality check ensures that each solar panel is of the highest quality and meets all the standard parameters.

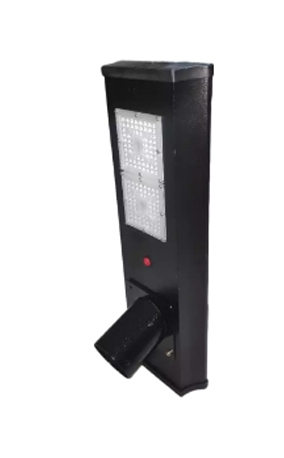

Integrated Solar Street Lights
UVI solar street lights are a completely off-grid lighting solution. Made with in-house aluminum casings they are weatherproof and can be customized for wattage, backup, and charging time.
UVI street lights use LiFePO4 batteries which provide excellent backup and are charged with panels that are made in-house and hence have full compatibility.
| Model | Cells | Voltage/ Wattage | Module Size [ + 1mm ] | Vmax (V) | Imax (A) | Voc (V) | Isc (A) | Module Effciency (%) |
|---|---|---|---|---|---|---|---|---|
| R025P | 36 | 12V / 20Wp | 396 x 671 x 35mm | 19.08 | 1.32 | 23.10 | 1.38 | 9.41 |
| R040P | 36 | 12V / 40Wp | 496 x 671 x 35mm | 19.08 | 2.10 | 23.10 | 2.19 | 12.02 |
| R050P | 36 | 12V / 50Wp | 556 x 671 x 35mm | 19.08 | 2.63 | 23.10 | 2.75 | 13.40 |
| R075P | 36 | 12V / 75Wp | 776 x 671 x 35mm | 19.08 | 3.94 | 23.10 | 4.12 | 14.40 |
| R100P | 36 | 12V / 100Wp | 1106 x 671 x 35mm | 19.08 | 5.25 | 23.10 | 5.49 | 13.47 |
| R160P | 36 | 12V / 160Wp | 1496 x 671 x 35mm | 19.08 | 8.39 | 23.10 | 8.77 | 15.94 |
| R260P | 60 | 20V / 260Wp | 1640 x 990 x 35mm | 31.80 | 8.18 | 38.50 | 8.55 | 16.00 |
| R265P | 60 | 20V / 265Wp | 1640 x 990 x 35mm | 31.80 | 8.34 | 38.50 | 8.72 | 16.32 |
| R270P | 60 | 20V/270W | 1640 x 990 x 35mm | 31.80 | 8.50 | 38.50 | 8.88 | 16.63 |
| R260P(72C) | 72 | 24V/260W | 1640 x 990 x 35mm | 38.16 | 6.82 | 46.20 | 7.13 | 16.00 |
| R270P(72C) | 72 | 24V/260W | 1640 x 990 x 35mm | 38.16 | 7.08 | 46.20 | 7.40 | 16.63 |
| R320P | 72 | 24V / 320Wp | 1960 x 990 x 35mm | 38.16 | 8.39 | 46.20 | 8.77 | 16.50 |
| R325P | 72 | 24V / 325Wp | 1960 x 990 x 35mm | 38.16 | 8.52 | 46.20 | 8.90 | 16.75 |
| R330P | 72 | 24V / 330Wp | 1960 x 990 x 35mm | 38.16 | 8.65 | 46.20 | 9.04 | 17.00 |
| R335P | 72 | 24V / 335Wp | 1960 x 990 x 35mm | 38.16 | 8.78 | 46.20 | 9.18 | 17.25 |
| Model | Cells | Voltage/ Wattage | Module Size [ + 1mm ] | Vmax (V) | Imax (A) | Voc (V) | Isc (A) | Module Effciency (%) |
|---|---|---|---|---|---|---|---|---|
| R385P | 72 | 24V / 385Wp | 1986 x 990 x 35mm | 40.32 | 9.55 | 48.25 | 9.99 | 19.39 |
| R390P | 72 | 24V / 390Wp | 1986 x 990 x 35mm | 40.68 | 9.59 | 48.96 | 10.02 | 19.64 |
| Model No. | VISSL-10 | VISSL-20 | VISSL-30 |
|---|---|---|---|
| No of LED | 56 | 112 | 168 |
| LED Chip | Philips/OSRAM | Philips/OSRAM | Philips/OSRAM |
| Solar PV Module | 10 WP Mono-Pere | 20 WP Mono-Pere | 30 WP Mono-Pere |
| Solar Panel MPP Voltage | 9Volt | 9Volt | 9Volt |
| Battery type and capacity | 3.2V 6AH Life PO4 | 3.2V, 12AH LifePO4 | 3.2V 18AH Life PO4 |
| Motion Sensor | Passive Infrared Sensor-12 meters working range, Detection:102 degree horizontal 92 degree vertical. | ||
| Lumen Output | 1200 Lumen | 2400 Lumen | 3600 Lumen |
| Secondary optics | yes | yes | yes |
| LED driver efficiency | >92% | >92% | >92% |
| LED driver methodology | MPPT Charge Controller | MPPT Charge Controller | MPPT Charge Controller |
| Charge controller methodology | Three stage battery charge monitoring algorithm | Three stage battery charge monitoring algorithm | Three stage battery charge monitoring algorithm |
| Ideal current consumption | Less than 2ma | Less than 2ma | Less than 2ma |
| Light mounting height | 5.5 meter above ground level | 5.5 meter above ground level | 5.5 meter above ground level |
| Color tempreture | 6000K-6500K | 6000K-6500K | 6000K-6500K |
| Humidity range | 0 to 95% | 0 to 95% | 0 to 95% |
| Temprature range | 0 C to 60 c | 0 C to 60 c | 0 C to 60 c |
| Dimessions (MM) | 400 x 190 x155 | 600 x 190 x155 | 800 x 190 x155 |
Key Features
5 busbar solar cell design
Positive power tolerance up to +5W
Excellent low-light performance
Anti-Reflective Coated glass to reduce power loss
PID ( Potential Induced Degradation) free material
Application Class: A, Safety Class Ⅱ, Fire Safety Class C
Mechanical Load 2400Pa
Anodized Aluminium with corner Lock Type
ON-TIME delivery
IP 68 Junction Box
Team
Ila Bansal
BE Electrical from SGSITS 15 Year in the Lighting industry and 5 Years in the Solar sector Strong technical skills in product development
Urvashi Khandelwal
PG Diploma in Design 4 years experience in solar industry Expert in handling HR and manpower management issues
Akshat Goyal
Btech and Mtech IITB 10 Years in Lighting and 5 years in Solar Industry Handles Institutional sales and after-sales
